Images, initially drawings now photos, are widely used in biology and medicine but when published not always understandable.

Image Workflow for Novice Users

When preparing images for publication, the sequence and proper use of software matters to truthfully report observations. During the first lock down, Christopher Schmied and I therefore created cheat sheets that explain a most basic workflow to get everyone from microscope data to figure in a few simple steps.

Cheat Sheets

The workflow is summarized in two printable cheat sheets. One cheat sheet explains the steps towards a publishable image, the second cheat sheet how to implement the steps with ImageJ/FIJI image processing software.

Figure 1: Preparing an image for publication: a quick design reference. From: Schmied and Jambor. Effective image visualization for publications - a workflow using open access tools and concepts

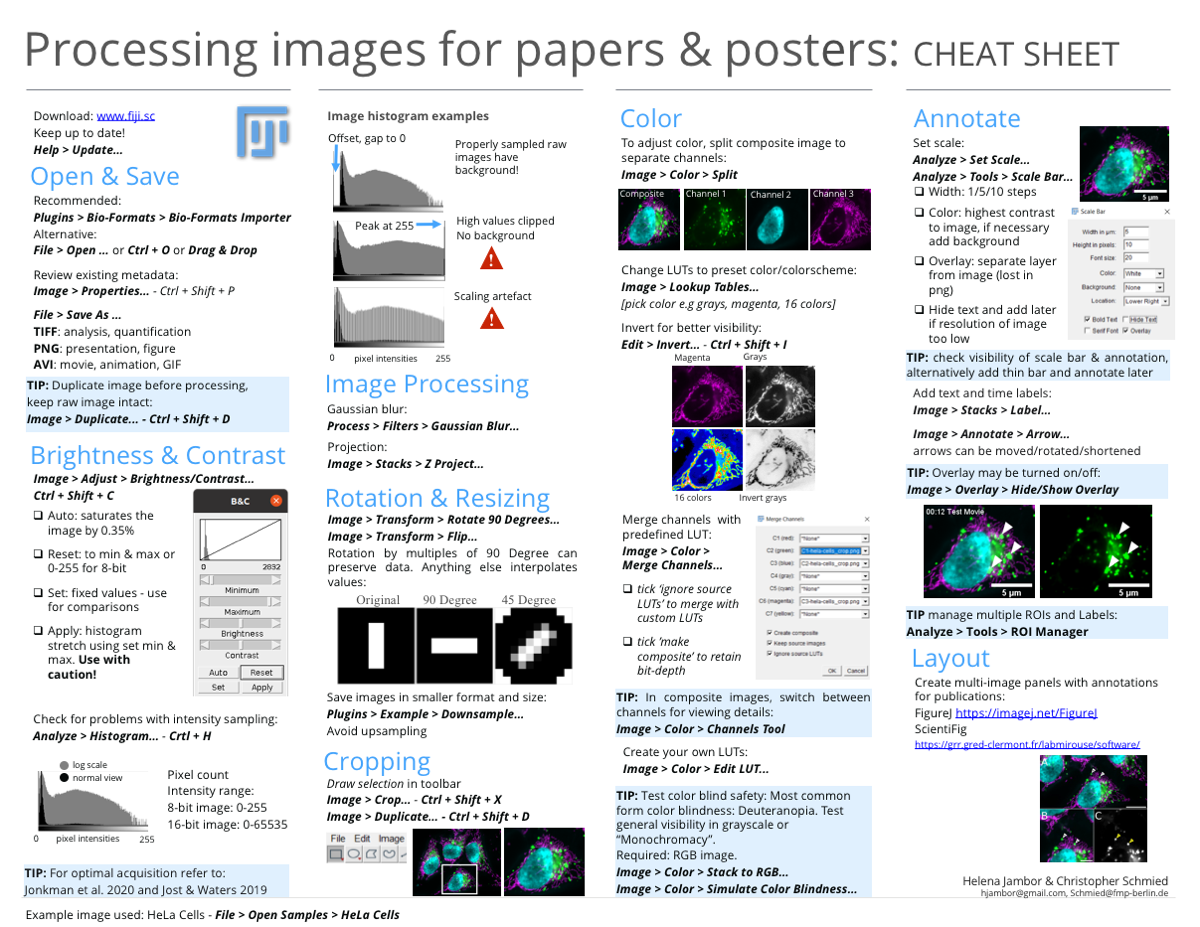

Figure 2: Processing image: a quick guide how to do this in FIJI. From: Schmied and Jambor. Effective image visualization for publications - a workflow using open access tools and concepts

Download

Get the cheat sheets as printable PDF. Note, we used an open license, that means you can get the adaptable files and e.g., make translations, alterations, or add your own notes.

A German version was already made by Joram Schwartzmann, checkt it out!

Further resources

Beyond our starter cheat sheets more great resources help you along the way: The “Biologist’s guide to planning and performing quantitative bioimaging experiments” describes the entire arc from sample to microscope via image analysis towards data interpretation and publication. The resource lists many key points and aggregates links to more detailed descriptions, making it easy for biologists to navigate their first microscopy experiments.

Figure 3: A biologist’s guide to planning and performing quantitative bioimaging experiments Senft RA, Diaz-Rohrer B, Colarusso P, Swift L, Jamali N, Jambor H, et al. (2023) PLoS Biol
